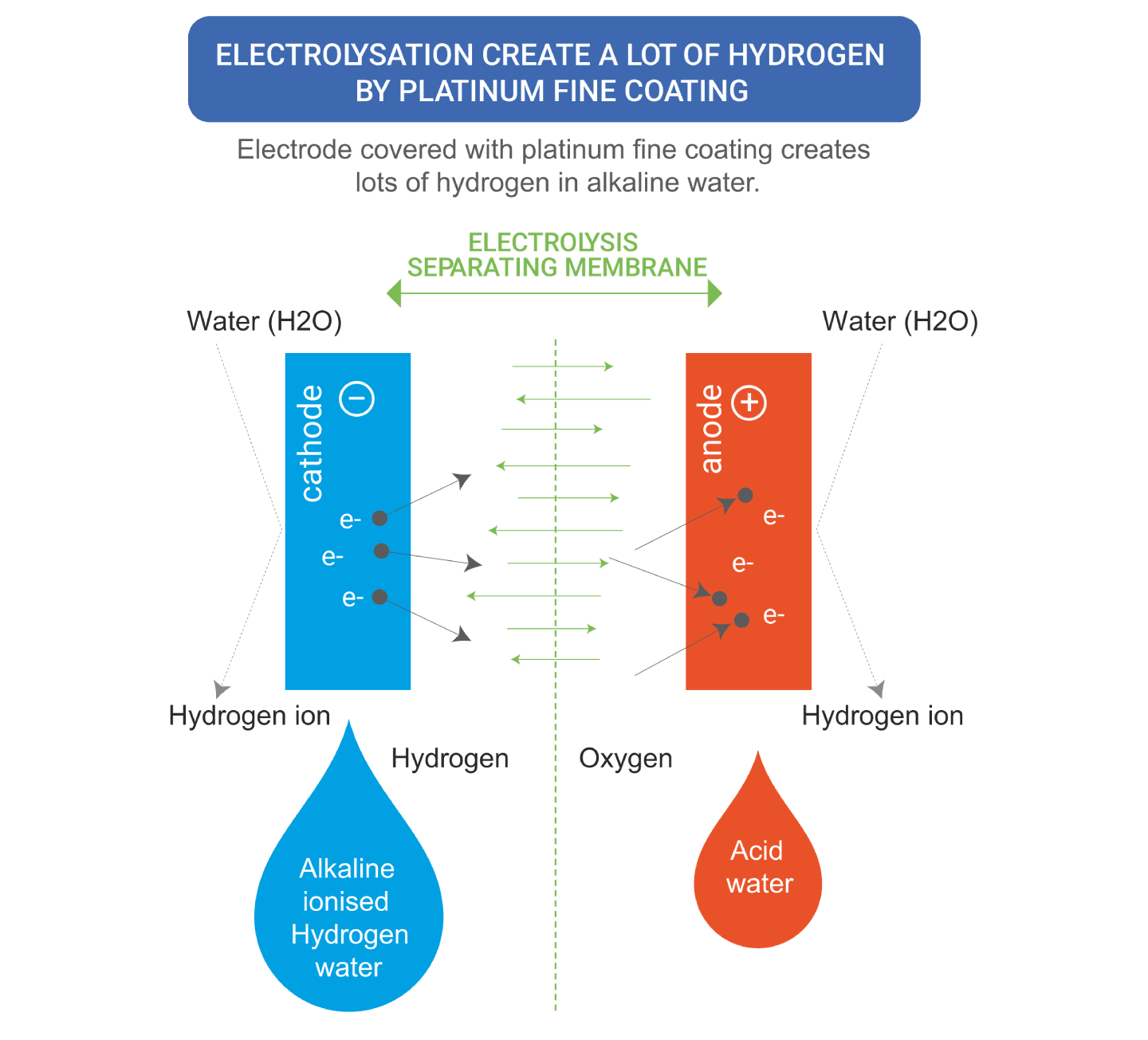

When water is electrolyzed, hydrogen is generated on the negative electrode side (cathode side), and as cations such as hydroxide ions and calcium ions increase, electrolyzed reduced water (electrolyzed hydrogen water) is produced.
| Product name [Overseas product model] | ET-800S | |||||||||||||||||||||||||
| Power supply / power consumption | AC220-240V 50/60Hz 210W (Maximum) 0.7W (Standby) | |||||||||||||||||||||||||
| Type and common name | Machinery and equipment 83 Medical substance generator Continuous electrolyzed water generator | |||||||||||||||||||||||||
| Medical device certification number | 303AFBZX00032A01 <Controlled medical equipment> (Japan) | |||||||||||||||||||||||||
| Main body | Dimensions : Width 255mm × Depth 130mm × Height 335mm Weight : Approx. 8kg (when full) Approx. 6kg (when dry) | |||||||||||||||||||||||||
| Water supply specifications | Switching cock connection : 3-stage switching type (built-in hot water stopper and pressure relief valve) | |||||||||||||||||||||||||
| Electrolysis system | Continuous electrolysis method (built-in flow sensor) | |||||||||||||||||||||||||
| Maximum water temperature for continuous use | 40℃ | |||||||||||||||||||||||||
| Maximum water pressure for continuous use | 0.5MPa | |||||||||||||||||||||||||
| Electrolytic | Water discharge amount (0.1MPa) | Electrolyzed hydrogen water (main): approx. 2.4L/min, Acidic water (secondary): approx. 0.6L/min | ||||||||||||||||||||||||
| Water discharge ratio | Electrolyzed hydrogen water : acidic water = 4 : 1 | |||||||||||||||||||||||||
| Electrolytic level | 8 stages (Electrolyzed reduced water : 5 stages, Acidic water : 2 stages, Purified water) | |||||||||||||||||||||||||
| Continuous usable time | Normal mode : 10 minutes, Strong mode : 5 minutes | |||||||||||||||||||||||||
| Cleaning method | Automatic cleaning method (30 seconds cleaning time) and manual (60 seconds optional with guide) | |||||||||||||||||||||||||
| Filtration flow rate (at 0.1MPa) | 3.0L/min | |||||||||||||||||||||||||
| Minimum usable dynamic water pressure | 0.1MPa | |||||||||||||||||||||||||

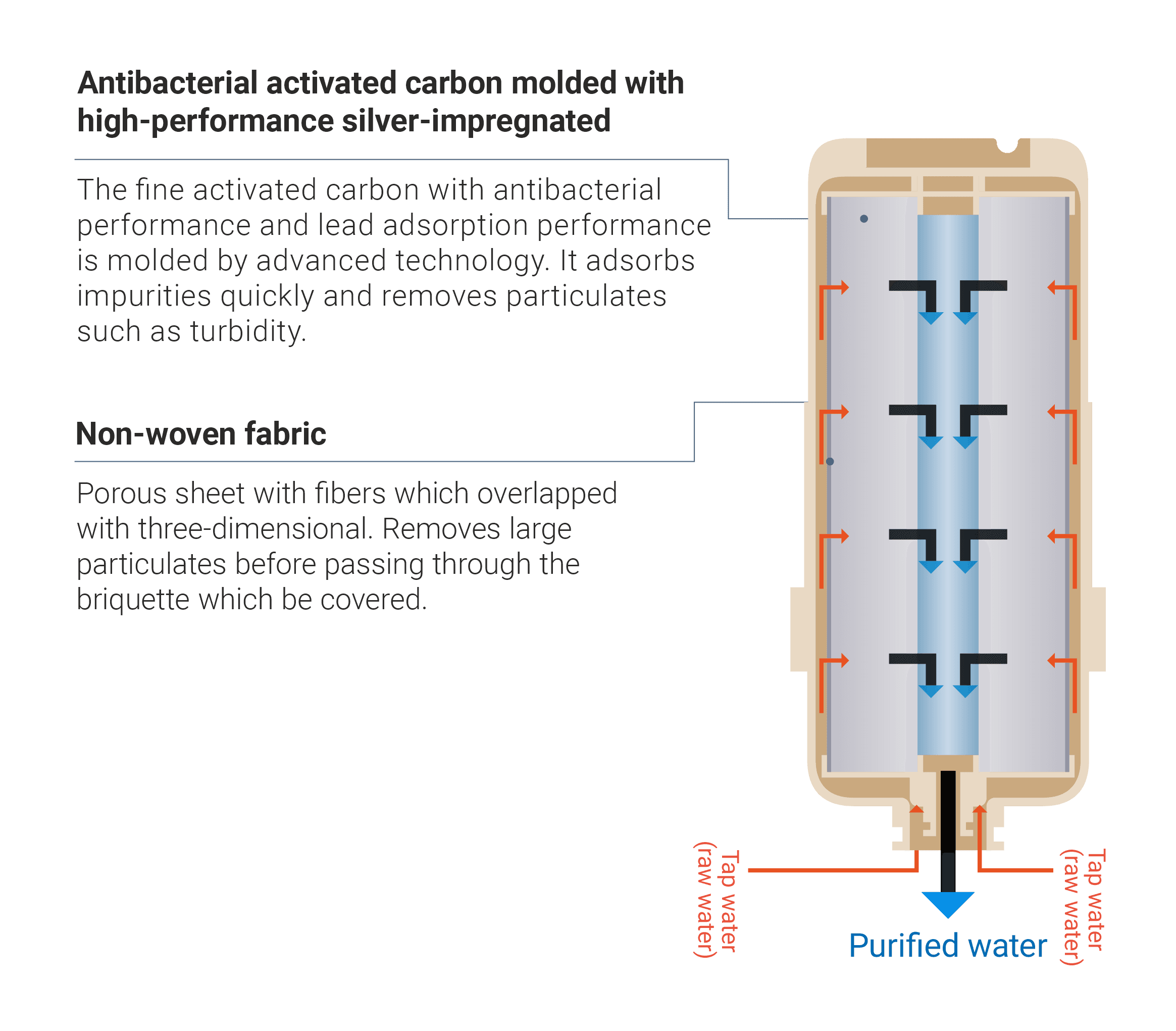

| Type of filter media | Activated carbon, non-woven fabric | |||||||||||||||||||||||||
| Water purification cartridge (LF-C1A) | Water purification capacity (total filtration flow rate) *1 |
| ||||||||||||||||||||||||
| Protection device | Estimated time to replace filter media*2 | 12,000L (value of 80% removal rate according to JIS S 3201 test) Approximately 1 year (when using 30L per day) |
| Current fuse, power supply overheat auto OFF, auto OFF when over output |
*1: Value with a removal rate of 80% in a test based on the household water purifier test method (JIS S 3201). For turbidity, the value is at 50% filtration flow rate.
*2: To maintain the performance of this device, the cartridge must be replaced once a year. The usage amount is based on free residual chlorine.
*3: If special installation is required other than standard installation work, a separate installation fee will be charged.
*Before use, please read the instruction manual carefully and use it correctly.
